TMODBUS_Response_PDU Class Reference

MODBUS responce PDU class. More...

#include <MODBUS_Response_PDU.h>

Inheritance diagram for TMODBUS_Response_PDU:

Collaboration diagram for TMODBUS_Response_PDU:

Public Member Functions
	TMODBUS_Response_PDU ()
	Class constructor method. More...
virtual	~TMODBUS_Response_PDU ()
	Class destructor method. More...
VOID	Init (U8 u8_Slave_Address, U8 u8_Function_Code)
	Initialisation PDU with specified slave address abd function code. More...
VOID	Init (U8 u8_Slave_Address, U8 u8_Function_Code, U8 u8_Response_Code)
	Initialisation PDU with specified slave address abd function code. More...
virtual BOOL	Done ()
	Finalise responce composition. More...
VOID	Write_U8_Value (U32 u32_Address, U8 u8_Value)
	Write U8 value into responce PDU buffer at specified address. More...
VOID	Write_U16_Value (U32 u32_Address, U16 u16_Value)
	Write U16 value into responce PDU buffer at specified address. More...
VOID	Write_U32_Value (U32 u32_Address, U32 u32_Value)
	Write U32 value into responce PDU buffer at specified address. More...
VOID	Write_F32_Value (U32 u32_Address, F32 f32_Value)
	Write F32 value into responce PDU buffer at specified address. More...
Public Member Functions inherited from TMODBUS_PDU_Base
	TMODBUS_PDU_Base ()
	Class constructor method. More...
virtual	~TMODBUS_PDU_Base ()
	Class destructor method. More...
BOOL	Is_Empty ()
	Returns PDU buffer empty status. More...
U32	Get_Size ()
	Returns PDU buffer size. More...
U32	Get_Index ()
	Returns actual PDU buffer index. More...
VOID	Set_Index (U32 u32_New_Index)
	Set PDU buffer index. More...
U8 *	Get_Buffer_Pointer ()
	Returns pointer to PDU buffer. More...
VOID	Init ()
	PDU initialisation method. More...
VOID	Init (U8 u8_Slave_Address)
	PDU initialisation with specifird slave address. More...
VOID	Set_Slave_Address (U8 u8_Slave_Address)
	Set slave address. More...
U8	Get_Slave_Address ()
	Returns actual slave address. More...
VOID	Set_Function_Code (U8 u8_Function_Code)
	Set function code method. More...
U8	Get_Function_Code ()
	Get function code method. More...
U8	Read_U8_Value ()
	Read U8 value at actual address method. More...
U8	Read_U8_Value (U32 u32_Address)
	Read U8 value at specifird address method. More...
VOID	Append_U8_Value (U8 u8_Value)
	Append U8 value at the buffer end method. More...
U16	Read_U16_Value ()
	Read U16 value at specifird address method. More...
U16	Read_U16_Value (U32 u32_Address)
	Read U16 value at specifird address method. More...
VOID	Append_U16_Value (U16 u16_Value)
	Append U16 value at the buffer end method. More...
U32	Read_U32_Value ()
	Read U32 value at specifird address method. More...
U32	Read_U32_Value (U32 u32_Address)
	Read U32 value at specifird address method. More...
VOID	Append_U32_Value (U32 u32_Value)
	Append U32 value at the buffer end method. More...
F32	Read_F32_Value ()
	Read F32 value at specifird address method. More...
F32	Read_F32_Value (U32 u32_Address)
	Read F32 value at specifird address method. More...
VOID	Append_F32_Value (F32 f32_Value)
	Append F32 value at the buffer end method. More...
U16	Get_CRC ()
	Get cyclic redundancy check method. More...
BOOL	Is_Overrun ()
	Return PDU overrun status method. More...
BOOL	Is_Size_Valid ()
	Return PDU size valid status method. More...

Additional Inherited Members
Public Attributes inherited from TMODBUS_PDU_Base
U16	u16_Received_CRC = (U16)0x0000
	PDU received CRC. More...
Protected Attributes inherited from TMODBUS_PDU_Base
U8	u8_Buffer [MODBUS_PDU_BUFFER_SIZE] = { (U8)0x00 }
	PDU buffer data field. More...
U32	u32_PDU_Size = (U32)0
	PDU buffer size in byte. More...
U32	u32_PDU_Index = (U32)0
	PDU buffer index. More...
U16	u16_PDU_CRC = (U32)0x0000
	PDU buffer CRC. More...

Detailed Description

MODBUS responce PDU class.

Constructor & Destructor Documentation

TMODBUS_Response_PDU()

TMODBUS_Response_PDU::TMODBUS_Response_PDU

(

)

Class constructor method.

---

Note

None

Override

Not allowed

Attention

Don't call this method directly.

~TMODBUS_Response_PDU()

TMODBUS_Response_PDU::~TMODBUS_Response_PDU ( )

virtual

Class destructor method.

---

Note

None

Override

Not allowed

Attention

Don't call this method directly.

Member Function Documentation

Done()

BOOL TMODBUS_Response_PDU::Done ( )

virtual

Finalise responce composition.

---

Note

This method finalised responce composition by adding CRC to the PDU buffer.

Override

Not allowed

Attention

None

Implements TMODBUS_PDU_Base.

References TCRC_16_Base::Calculate(), Extract_U8_From_U16(), Increment_Saturated(), MODBUS_PDU_BUFFER_SIZE, TMODBUS_PDU_Base::u16_PDU_CRC, TMODBUS_PDU_Base::u32_PDU_Index, TMODBUS_PDU_Base::u32_PDU_Size, and TMODBUS_PDU_Base::u8_Buffer.

Referenced by TProtocol_MODBUS_Over_UART::Execute().

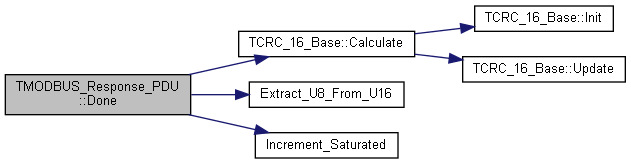

Here is the call graph for this function:

Here is the caller graph for this function:

Init() [1/2]

VOID TMODBUS_Response_PDU::Init	(	U8	u8_Slave_Address,
		U8	u8_Function_Code
	)

Initialisation PDU with specified slave address abd function code.

---

Note

None

Parameters

[in]	u8_Slave_Address	- Slave address
[in]	u8_Function_Code	- Function code

Override

Not allowed

Attention

None

References TMODBUS_PDU_Base::Init(), TMODBUS_PDU_Base::u32_PDU_Index, TMODBUS_PDU_Base::u32_PDU_Size, and TMODBUS_PDU_Base::u8_Buffer.

Referenced by TProtocol_MODBUS_Over_UART::CANopen_General_Reference(), TProtocol_MODBUS_Over_UART::Diagnostic(), TProtocol_MODBUS_Over_UART::Get_Communication_Event_Counter(), TProtocol_MODBUS_Over_UART::Get_Communication_Event_Log(), TProtocol_MODBUS_Over_UART::Mask_Write_Register(), TProtocol_MODBUS_Over_UART::Read_Coils(), TProtocol_MODBUS_Over_UART::Read_Device_Identefication(), TProtocol_MODBUS_Over_UART::Read_Discrete_Inputs(), TProtocol_MODBUS_Over_UART::Read_Exception_Status(), TProtocol_MODBUS_Over_UART::Read_FIFO_Queue(), TProtocol_MODBUS_Over_UART::Read_File_Record(), TProtocol_MODBUS_Over_UART::Read_Holding_Registers(), TProtocol_MODBUS_Over_UART::Read_Input_Register(), TProtocol_MODBUS_Over_UART::Read_Write_Multiple_Registers(), TProtocol_MODBUS_Over_UART::Report_Server_ID(), TProtocol_MODBUS_Over_UART::Write_File_Record(), TProtocol_MODBUS_Over_UART::Write_Multiple_Coils(), TProtocol_MODBUS_Over_UART::Write_Multiple_Registers(), TProtocol_MODBUS_Over_UART::Write_Single_Coil(), and TProtocol_MODBUS_Over_UART::Write_Single_Register().

Here is the call graph for this function:

Here is the caller graph for this function:

Init() [2/2]

VOID TMODBUS_Response_PDU::Init	(	U8	u8_Slave_Address,
		U8	u8_Function_Code,
		U8	u8_Response_Code
	)

Initialisation PDU with specified slave address abd function code.

---

Note

None

Parameters

[in]	u8_Slave_Address	- Slave address
[in]	u8_Function_Code	- Function code
[in]	u8_Response_Code	- Response code

Override

Not allowed

Attention

None

References TMODBUS_PDU_Base::Init(), TMODBUS_PDU_Base::u32_PDU_Index, TMODBUS_PDU_Base::u32_PDU_Size, and TMODBUS_PDU_Base::u8_Buffer.

Here is the call graph for this function:

Write_F32_Value()

VOID TMODBUS_Response_PDU::Write_F32_Value	(	U32	u32_Address,
		F32	f32_Value
	)

Write F32 value into responce PDU buffer at specified address.

---

Note

None

Parameters

[in]	u32_Address	- PDU buffer address
[in]	f32_Value	- F32 value to write

Override

Not allowed

Attention

None

References Increment_Saturated(), MODBUS_PDU_BUFFER_SIZE, TMODBUS_PDU_Base::u32_PDU_Index, and TMODBUS_PDU_Base::u32_PDU_Size.

Here is the call graph for this function:

Write_U16_Value()

VOID TMODBUS_Response_PDU::Write_U16_Value	(	U32	u32_Address,
		U16	u16_Value
	)

Write U16 value into responce PDU buffer at specified address.

---

Note

None

Parameters

[in]	u32_Address	- PDU buffer address
[in]	u16_Value	- U16 value to write

Override

Not allowed

Attention

None

References Extract_U8_From_U16(), Increment_Saturated(), MODBUS_PDU_BUFFER_SIZE, TMODBUS_PDU_Base::u32_PDU_Index, TMODBUS_PDU_Base::u32_PDU_Size, and TMODBUS_PDU_Base::u8_Buffer.

Here is the call graph for this function:

Write_U32_Value()

VOID TMODBUS_Response_PDU::Write_U32_Value	(	U32	u32_Address,
		U32	u32_Value
	)

Write U32 value into responce PDU buffer at specified address.

---

Note

None

Parameters

[in]	u32_Address	- PDU buffer address
[in]	u32_Value	- U32 value to write

Override

Not allowed

Attention

None

References Extract_U8_From_U32(), Increment_Saturated(), MODBUS_PDU_BUFFER_SIZE, TMODBUS_PDU_Base::u32_PDU_Index, TMODBUS_PDU_Base::u32_PDU_Size, and TMODBUS_PDU_Base::u8_Buffer.

Here is the call graph for this function:

Write_U8_Value()

VOID TMODBUS_Response_PDU::Write_U8_Value	(	U32	u32_Address,
		U8	u8_Value
	)

Write U8 value into responce PDU buffer at specified address.

---

Note

None

Parameters

[in]	u32_Address	- PDU buffer address
[in]	u8_Value	- U8 value to write

Override

Not allowed

Attention

None

References Increment_Saturated(), MODBUS_PDU_BUFFER_SIZE, TMODBUS_PDU_Base::u32_PDU_Index, TMODBUS_PDU_Base::u32_PDU_Size, and TMODBUS_PDU_Base::u8_Buffer.

Referenced by TProtocol_MODBUS_Over_UART::Get_Communication_Event_Log().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• ConOpSys/Engine/MODBUS_Response_PDU.h
• ConOpSys/Engine/MODBUS_Response_PDU.cpp
